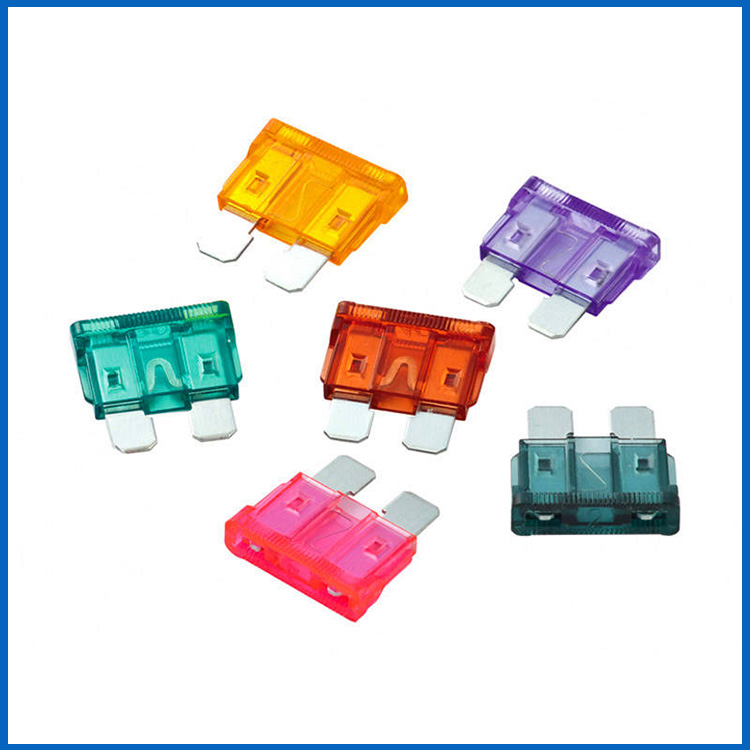

中号汽插片保险丝
| 电气特性 | |||||||
| 测试电流Testing current | 熔断时间Blow Time | ||||||
| Min小 | Max大 | ||||||
| 110% 135% | 0.75s | 100h | |||||
| 200% | 0.15s | 1800s | |||||
| 350% | 0.08s | 5s 0.5s | |||||
| 19±0.5, 5.2±0.2 0.64+0.04 14.5±0.3 3.7 | 5.2+0.5 | ||||||
| 参考资料 | |||||||
| 型号Type | 额定电流Current 额定电压 | 颜色标准Colour 冷电阻mQ | 小熔化热能 | ||||
| B3 | Rating | VoltageRating | Purple紫 | I2t(A2Sec) | |||
| 3 | 32 | 23~27 | 7.4 | ||||
| B4 | 4 | 32 Pink 粉紅 32 | 21~23 | 14 | |||
| B5 | 5 | Tan 褐 | 17.8~19.5 | 26 | |||
| B7.5 | 7.5 | 32 Coffee 咖啡 | 10.8~11.8 | 60 | |||
| B10 | 10 | 32 Red 红 Blue蓝 | 7.8~9.0 | 115 | |||
| B15 | 15 | 32 | 4.8~5.5 | 340 | |||
| B20 | 20 | 32 Yellow黄 | 3.8~4.1 | 520 | |||
| B25 | 25 | 32 Natural 自然 | 2.8~3.6 | 1080 | |||
| B30 | 30 | 32 | Green 2.3~2.7 | 1510 | |||
| B35 | 35 | 32 | Blue Green 蓝绿 | 1.8~2.0 | 2280 | ||
| B40 | 40 | 32 | Amber 琥珀 | 1.65~1.75 | 3310 | ||
